Commercial composting unit for up to 100 households
This fantastic new product from Joraform makes it easy and convenient to compost in your neighbourhood! The JK5100 commercial composter is an entirely new type of compost machine, with a unique mixing function. This fully automatic composting machine has a capacity of up to 100 households, a large restaurant or complex or even a hospital.
Fully equipped with a shredder, which is necessary for effective and rational composting, the JK-5100 Commercial Composter consists of two chambers which let the post-composting take place inside the bin, which in turn means that the compost is ready to be used immediately after emptying.

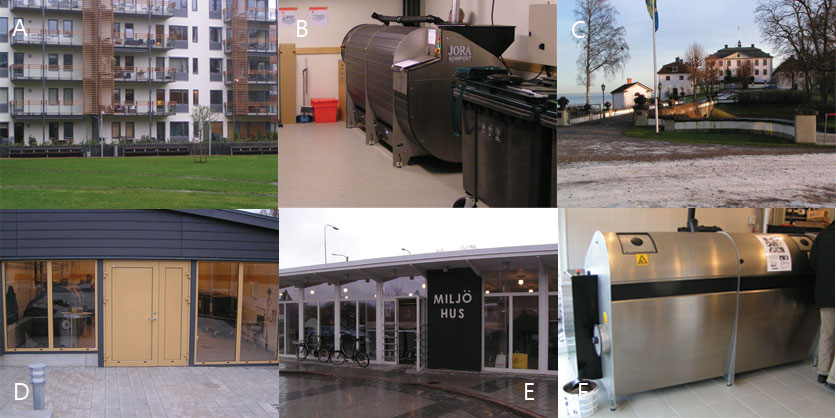

- This is a large apartment complex in Oslo, Norway with 1200 apartments. in this area they have 12 units of the JK-5100 Commercial Composter to handle the household waste.
- In the apartment complex in Oslo, the JK-5100's are installed in the basement instead of external houses. The ventilation is connected to the central waste water system.
- The beautiful Mauritzberg Hotel in Sweden has had a JK-5100 installed since 2001. They add all the foodwaste from the restaurant into the machine and use the compost for the local gardens.
- This is an installation in Falkenberg, Sweden. This tenant-ownership society have 4 similar environmental houses with one of the JK-5100 Commercial Composters in each house.
- This is an environmental house in Gothenburg, Sweden. Here they are sorting all kinds of household waste and they have a JK-5100 Composter.
- Inside the Environmental House in Gothenburg, you can see the unit installed. The ventilation is connected to the building's central waste water system.
The chute is placed conveniently, also for those chairbound.
Robustly constructed, the body is made of stainless steel and all moving parts are replaceable for optimal working life. Grinding, mixing and aeration operations are variable and controlled in a programmable unit in the wall-mounted control panel, thus enabling the machine to be easily adapted for optimal composting of the particular waste stream.
Features…
- Easy to Maintain
- Conveniently Placed Feeding Chute
- Inspection Covers
- Genuine Robust Construction
- Swedish Design & Manufacture
How it Works
Compost in 4 Easy Steps…
- Chute for charging food waste
- Composting
- Ripening
- Emptying
For obtaining the best possible end product with perfect hygiene, the composter has two chambers.
All the waste is processed through the grinder before it reaches the first chamber called the process chamber, where the waste is treated and aired with a newly developed mixing technique.
After around 2 weeks, the mixing mechanism passes the material into the second chamber to finalise the ripening process.
The second chamber for ripening is equipped with a separate mixing function.
Energy efficient and environmentally friendly
An important part of Joraform’s environmental policy is to develop products that can be manufactured from recycled or recyclable material. The JK 5100 receptacles are made of 100% recycled household plastic containers.
Specifications
| Dimensions |
3,000 l x 1,240mm d x 1,505 h. Output Chute: Centre of the outlet lid 600mm, diameter 250mm. |
| Weight |
800 kg |
| Space Required around JK5100 |
Back: 300mm to overhaul ventilation system and if you need to lift the top hatch.
Intake side: min. 600mm space req. for the electrical cabinet, maintenance and refill of pellets
Outlet side: min. 1000mm space req. for a box where you fill soil and for maintenance. |
| Capacity |
Approx 100 households – maximum 700 litres per week |
| Turnaround Time |
At maximum capacity, compost is ready every 2 weeks after the initial 4 week start up period. |
| Power/Mains Connection |
380V, 3 phase, 50 Hz, 16 A |
| Ventilation |
Built in fan |
| Noise Level |
70 db when adding food waste (20 seconds), at other times very quiet |
| Location/Placement |
Suitable for outdoors – weatherproof electricals. Frost-proof location required |
| Materials |
All parts that have contact with compost are grade 304 stainless steel. Fasteners are made of A2. All plastic is 100% recycled household plastic. |
| Tolerance of Shredder |
Hardox Steel (its very strong in case of foreign object such as can or kitchen knife accidentally entering the unit). |
| Shredder Safety Mechanism |
Shredder locked when machine is working. |
| Transporting the JK5100 |
The machine is easy to lift with a standard forklift that can handle the weight. Transportation into its final position is with one or two standard hand pallet trucks on each gable. More about the installation in user manual. |
| Assembly |
Arrives complete – no assembly of actual unit is required. |
| Installation |
Electric box needs to be mounted to the wall and the ventilation pipe to the building waste water system. All wiring is connected and can’t be split as they are welded together. |
| Tools Required |
Standard tools only eg; spanners, allen key, screwdriver, etc |
| Optional Extras |
Temperature probe, carbon filter in ventilation system |
| Control Panel |
3 buttons: 1 is for emptying chamber 2. 2 is emergency stop
3 lamps: Green – the machine is ready to use. Yellow – the machine is working so you must wait. Red – something is wrong, eg; some one has used the emergency stop. |
| Parts Replacement |
All wearing parts are replaceable for optimal working life. |
| Maintenance Contract |
Available on request |
